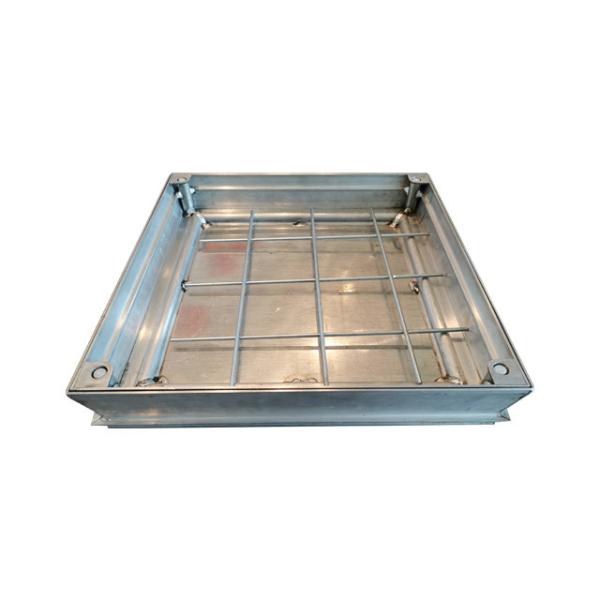

Recessed Access Cover Aluminum Material 600mm*600mm Size ISO 9001 Certification
Recessed Aluminum Manhole Cover
Description:
Access Cover UNIFACE SMART AL
Lightweight cover with structural composite infill (no concrete necessary)
Load capacity L15 with tiles in thickness up to 15 mm
Extremely easy opening and manipulation
No risk-load capacity always guaranteed
adhesive layer tile/resin/vinyl floor New composite infill build in.
No need for additonal concrete.
Applications:
floor,road,driveway,garden,park,Industry,Construction and public use,etc.,etc.

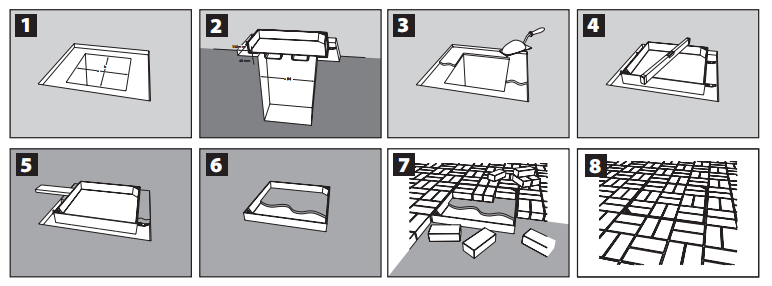

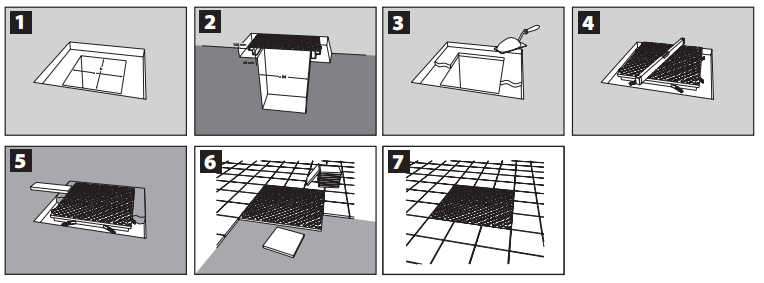

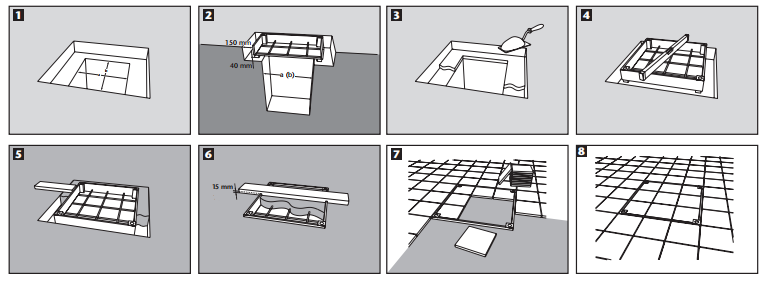

Detailed installations are part of delivery of each cover
Access Cover UNIFACE
Access Cover PAVING
Access Cover SOLID
Specifications:
Access Covers Mesh: Zinc plated round bar -dia 5mm Seal: Double-EPDM strip Locking: Yes Special Size: Possible | ||||
Item code | Spec | External dimensions mm | Clear opening mm | Height mm |
AC312301 | 200*200 | 200*200 | 116*116 | 55 |
AC312302 | 300*300 | 300*300 | 216*216 | 55 |
AC312303 | 400*400 | 400*400 | 316*316 | 55 |
AC312304 | 500*500 | 500*500 | 416*416 | 55 |
AC312305 | 600*600 | 600*600 | 516*516 | 55 |
AC312306 | 700*700 | 700*700 | 616*616 | 55 |
AC312307 | 800*800 | 800*800 | 716*716 | 55 |
AC312308 | 900*900 | 900*900 | 816*816 | 55 |
AC312309 | 1000*1000 | 1000*1000 | 916*916 | 55 |
Competitive Advantage:
Our main range of manhole covers with aluminium and stainless steel materials provide internally and externally use for floor,road,driveway,garden or show rooms and other areas where the best aesthetic finish is required.
. Frame & cover are made of extruded aluminium profile and
galvanized stainless steel
. Easy to lift with threaded lifting keys
. We can follow your dimentions and requirements per your design.
![]() |
